Computed Radiography (CR)
Vertical-load Fujifilm CR reader delivering up to ~94 IPs/hour, with optional 50 μm reading (HR-V plates) for fine detail and a compact footprint for constrained rooms.
Medem LTD supplies FCR CAPSULA XLII with CR Console, HR-V upgrade, cassettes and DRYPIX pairing, including installation, DICOM setup and operator training.
Overview

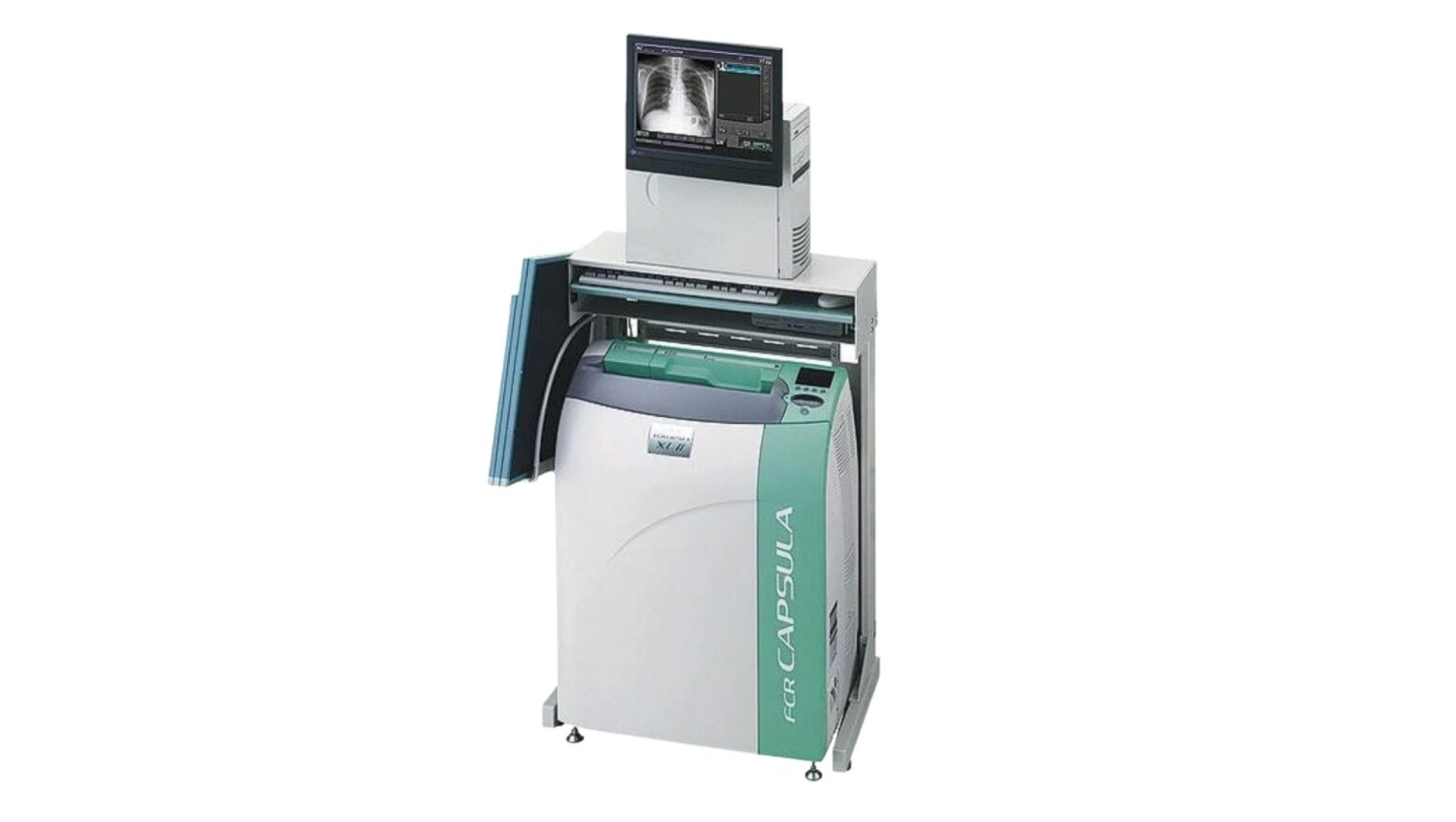

CAPSULA XLII (CR-IR 359) is a vertical-load computed radiography reader that combines a compact footprint with high throughput. The optional HR-V kit unlocks 50 μm pixel size for finer structures when paired with Type CH cassettes.
CR Console manages patient worklists, QC and DICOM routing to PACS or to Fujifilm DRYPIX dry imagers, so CAPSULA XLII fits both digital workflows and sites still printing film.
Workflow
Up to ~94 IPs/hour in high-speed mode; switch to high-resolution mode (50 μm) with HR-V plates for cases that demand finer anatomy, then DICOM the study to PACS or DRYPIX imagers.
Features
Slim 590 x 380 mm footprint with vertical cassette insertion to fit confined rooms.
Up to ~94 IPs/hour in high-speed mode (18 x 24 cm), ~70 IPs/hour on 35 x 35 cm.
HR-V plates with Type CH cassettes enable 50 μm reading for fine structures.
Type CC, LC and CH cassettes cover chest, spine, long-leg, pantomography and extremities.
Image Intelligence noise control via CR Console, with DICOM routing to PACS and DRYPIX.
Specifications
Procurement
Related equipment
Compare CAPSULA XLII with PRIMA T2 and pair with DRYPIX imagers for film output when needed.
FAQ
A compact vertical-load CR reader (CR-IR 359) delivering up to ~94 imaging plates per hour, with optional 50 μm reading when equipped with HR-V plates and Type CH cassettes.
Type CC, LC and CH cassettes with ST-VI plates for standard 100 μm reading, and HR-V plates with Type CH cassettes for optional 50 μm high-resolution reading.
35x43, 35x35, 10x12, 8x10, 24x30, 18x24 and 15x30 cm — covering chest, spine, long-leg, pantomography and extremities.
Yes. Medem supplies refurbished units (new on request), CR Console, HR-V kits, cassettes, installation, DICOM setup and DRYPIX pairing.
Procurement support
Share destination, condition (refurbished or new when available), cassette mix (CC/LC/CH), HR-V kit needs and DRYPIX pairing. Medem will confirm lead times, logistics and install scope.
