Fuji Medical Dry Laser Imager

Fujifilm DRYPIX Edge (DRYPIX 8000) medical dry laser imager

Fujifilm DRYPIX Edge — the flagship of the Fuji DRYPIX dry laser imager line — combines 3 universal film trays, 110 sheets/hour throughput at 14 x 17", 508 dpi mammography-capable resolution and an optional 4-bin sorter. Compatible with Fujifilm DI-HL, DI-HLc and DI-ML dry imaging films.

Medem LTD is a supplier and distributor of the Fujifilm DRYPIX Edge / DRYPIX 8000 imager for hospitals, mammography centers, medical equipment dealers and tender resellers, with DI-HL, DI-HLc and DI-ML film supply available.

View full specifications

Overview

What is the Fujifilm DRYPIX Edge?

Fujifilm DRYPIX Edge is a high-throughput medical dry laser imager (DRYPIX 8000 class) designed for general radiology and mammography hardcopy at multi-department hospitals and imaging centers. Three universal trays, 110 sheets/hour at 14 x 17 inch and an optional 4-bin sorter make it the flagship of the Fuji DRYPIX line.

DRYPIX Edge uses three Fujifilm dry imaging films — DI-HL (blue base), DI-HLc (clear base) and DI-ML (mammography) — and ships through Medem as refurbished tested units or new (subject to factory availability), with optional installation, DICOM integration, operator training and ongoing film supply.

Image processing

Engineered for diagnostic image quality

14-bit exposure, automatic density correction and a color touch panel deliver consistent sharp output across CR, CT, MRI, DSA and mammography modalities — with daylight loading and animated help for fast operator training.

Compatible films

Three Fujifilm dry imaging films supported

DRYPIX Edge prints on Fujifilm DI-HL (blue base) and DI-HLc (clear base) for general radiology, and DI-ML (blue base) for mammography. All three lines are supplied by Medem.

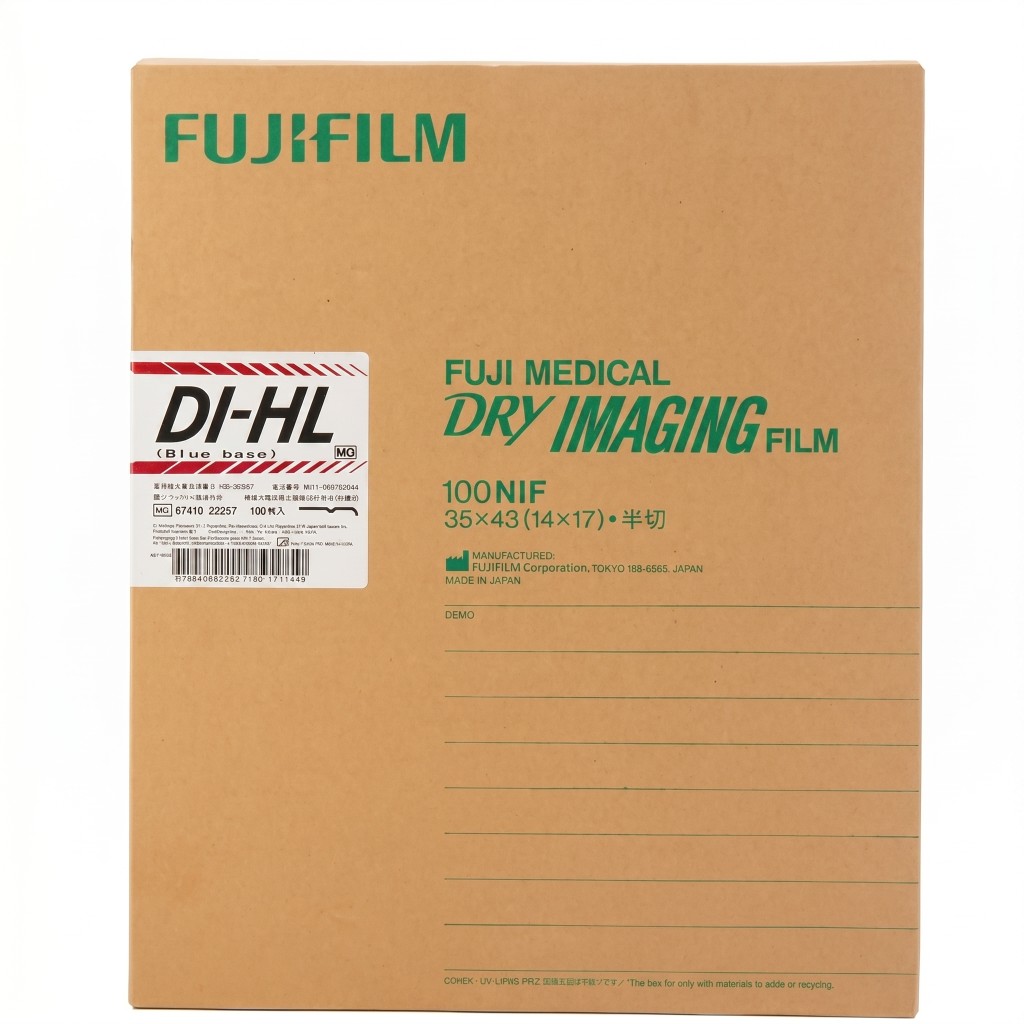

Fujifilm DI-HL (blue base)Five sizes from 35x43 (14 x 17") to 20x25 (8 x 10") — general radiology hardcopy on DRYPIX Edge.

Fujifilm DI-HLc (clear base)Five sizes from 35x43 (14 x 17") to 20x25 (8 x 10") — clear base for high-contrast diagnostic output.Page coming soon

Fujifilm DI-ML (blue base)Mammography film at 508 dpi — 26x36, 25x30 and 20x25 cm (10 x 14", 10 x 12", 8 x 10").Page coming soon

Features

Why hospitals choose DRYPIX Edge

3 universal film trays

Three trays support five sizes simultaneously: 35x43, 35x35, 26x36, 25x30 and 20x25 cm (14x17", 14x14", 10x14", 10x12", 8x10").

Fast — 110 sheets/hour at 14 x 17"

Throughput peaks at 110 sheets/hour for 35.4 x 43.0 cm output and 160 sheets/hour for 25.7 x 36.4 cm, ideal for multi-department hospitals.

Mammography-ready at 508 dpi

50 μm resolution and max density 4.0 with DI-ML film — DRYPIX Edge is officially mammography-capable and supports the Pink Ribbon Campaign.

DI-HL, DI-HLc and DI-ML film support

Three Fujifilm dry imaging film lines on one imager: DI-HL (blue base), DI-HLc (clear base) and DI-ML (mammography).

Optional sorter (4 destinations)

Add a sorter for modality-based classification — 3 bins of 30 sheets plus the imager tray for a 4-destination workflow.

Color touch panel, animated help

Color touch panel, signal lamp and animated explanations make daylight loading, tray changes and density adjustments straightforward.

Specifications

DRYPIX Edge / DRYPIX 8000 specifications

Marketing nameDRYPIX Edge

Model classFUJI MEDICAL DRY LASER IMAGER (DRYPIX 8000 class)

Recording methodLaser exposure, thermal development

Throughput (14 x 17")Approx. 110 sheets/hour at 35.4 x 43.0 cm

Throughput (10 x 14")Approx. 160 sheets/hour at 25.7 x 36.4 cm

Resolution50 μm / 508 dpi (high) · 100 μm / 254 dpi (standard)

Exposure resolution14 bit

Max density4.0 (purpose-specific DI-ML film required)

Trays3 universal trays (5 sizes supported by changing trays)

Applicable filmsFujifilm DI-HL (blue base), DI-HLc (clear base) and DI-ML (blue base)

Image memory1 GB

Input interfaceDICOM

Density correctionAutomatic, built-in (FDC)

Film loadingDaylight loading

Operation interfaceColor touch panel, signal lamp, animated help

Mammography supportYes (with DI-ML film at 508 dpi, density 4.0)

Optional sorter4 destinations (3 sorter bins + imager tray), 30 sheets/bin, classification by modality

Dimensions (imager only)Approx. 610 x 630 x 1,125 mm (24 x 25 x 44")

Dimensions (with sorter)Approx. 610 x 630 x 1,425 mm (24 x 25 x 56")

Weight (imager)Approx. 125 kg

Weight (with sorter)Approx. 135 kg

Power supply (100 V)100 V AC ±10%, 50/60 Hz, 12.0 A, single phase, D class grounding

Power supply (200 V)200 V AC ±10%, 50/60 Hz, 6.0 A, single phase, D class grounding

Working environment15-30 °C · 40-70% RH (at 15 °C) to 15-70% RH (at 30 °C), no dewing

Storage environment0-45 °C · 10-90% RH, no dewing

Procurement data

Supplier details for DRYPIX Edge buyers

Product referenceFujifilm DRYPIX Edge / DRYPIX 8000 medical dry laser imager

Condition optionsRefurbished and tested units; new units subject to factory availability

Price6800 EUR per refurbished unit (final price by destination, sorter option and installation scope)

Sorter optionOptional 4-bin sorter (sort by modality) — quoted separately

Quote lead timeUsually within 24 hours after destination, sorter option and condition are confirmed

InstallationInstallation, DICOM integration and operator training quoted on request

Service and partsService consumables, spare parts and DI-HL/DI-HLc/DI-ML film supply available

ShippingInternational freight quoted by destination; packaging for medical equipment included

DocumentsDatasheet, service brief and availability confirmation on request

By size

Fujifilm DRYPIX Edge film sizes — 35x43, 35x35, 26x36, 25x30 and 20x25 cm

DRYPIX Edge accepts five standard Fujifilm dry imaging film sizes across DI-HL, DI-HLc and DI-ML. The 3-tray design enables three formats to print simultaneously without tray swaps.

35x4335.4 x 43.0 cm · 14 x 17"

Films: DI-HL · DI-HLc100 sheets/pack

35x3535.4 x 35.4 cm · 14 x 14"

Films: DI-HL · DI-HLc100 sheets/pack

26x3625.7 x 36.4 cm · 10 x 14"

Films: DI-HL · DI-HLc · DI-ML150 sheets/pack

25x3025.2 x 30.3 cm · 10 x 12"

Films: DI-HL · DI-HLc · DI-ML150 sheets/pack

20x2520.1 x 25.2 cm · 8 x 10"

Films: DI-HL · DI-HLc · DI-ML150 sheets/pack

Supplier · Distributor · Dealer

Fujifilm DRYPIX Edge supplier, distributor and dealer support

Medem LTD works as a Fujifilm DRYPIX Edge / DRYPIX 8000 supplier and distributor for hospitals, mammography centers, medical equipment dealers and tender resellers worldwide.

Hospitals and radiology departments

DRYPIX Edge suits multi-department hospitals needing 3-tray flexibility, 110 sheets/hour throughput and DI-HL / DI-HLc film support.

Mammography centers

508 dpi resolution and DI-ML film support qualify DRYPIX Edge for mammography hardcopy at sites running mixed general-radiology / mammo workflows.

Medical equipment distributors and dealers

Medem prices Fujifilm DRYPIX Edge for medical equipment distributors, dealers and tender resellers, with consumables (DI-HL/DI-HLc/DI-ML) on request.

Imager replacement and upgrade projects

DRYPIX Edge is the natural upgrade from DRYPIX Smart (6000), 7000, 5000 or 4000 — same DI-HL film supply, 3 trays and sorter option.

Ask for a Fujifilm DRYPIX Edge / DRYPIX 8000 supplier offer with destination, condition (refurbished or new), sorter option and required film sizes (35x43, 35x35, 26x36, 25x30 or 20x25 cm) — indicative price from 6800 EUR, quote usually within 24 hours.

When to choose DRYPIX Edge

Fujifilm DRYPIX Edge supplier scenarios

Typical Fujifilm DRYPIX Edge deployment patterns supplied by Medem, by clinical workflow and buyer type.

Multi-department hospital — DRYPIX Edge with 3 trays of DI-HL (35x43, 26x36, 25x30)Three trays loaded with 35.4 x 43.0 cm, 25.7 x 36.4 cm and 25.2 x 30.3 cm DI-HL keep chest, full-body, skull, abdominal and extremity hardcopy running at 110 sheets/hour without tray swaps.
Mammography center — DRYPIX 8000 with DI-ML and optional sorterDI-ML 26x36 (10 x 14"), 25x30 (10 x 12") and 20x25 (8 x 10") with the 4-bin sorter route mammography, general radiology and special studies to separate bins.
High-throughput diagnostic imaging center — DI-HLc clear baseDI-HLc (clear base) gives higher diagnostic contrast for CR, CT, MRI and DSA on DRYPIX Edge while keeping the same five Fuji dry imaging film formats as DI-HL.
Medical equipment dealers and refurbishmentMedem supplies Fujifilm DRYPIX Edge units to medical equipment dealers and refurbishers, with optional DI-HL / DI-HLc / DI-ML film bundles and sorter modules.
Equipment upgrade project — DRYPIX 7000 / Smart / 4000 to EdgeUpgrading from an older Fuji laser imager — DRYPIX Edge keeps the existing DI-HL film line, adds the third tray and adds the optional sorter for modality-based sorting.

Other Fujifilm DRYPIX dry laser imagers

Compare DRYPIX Edge with the rest of the Fujifilm DRYPIX dry imager line supplied by Medem.

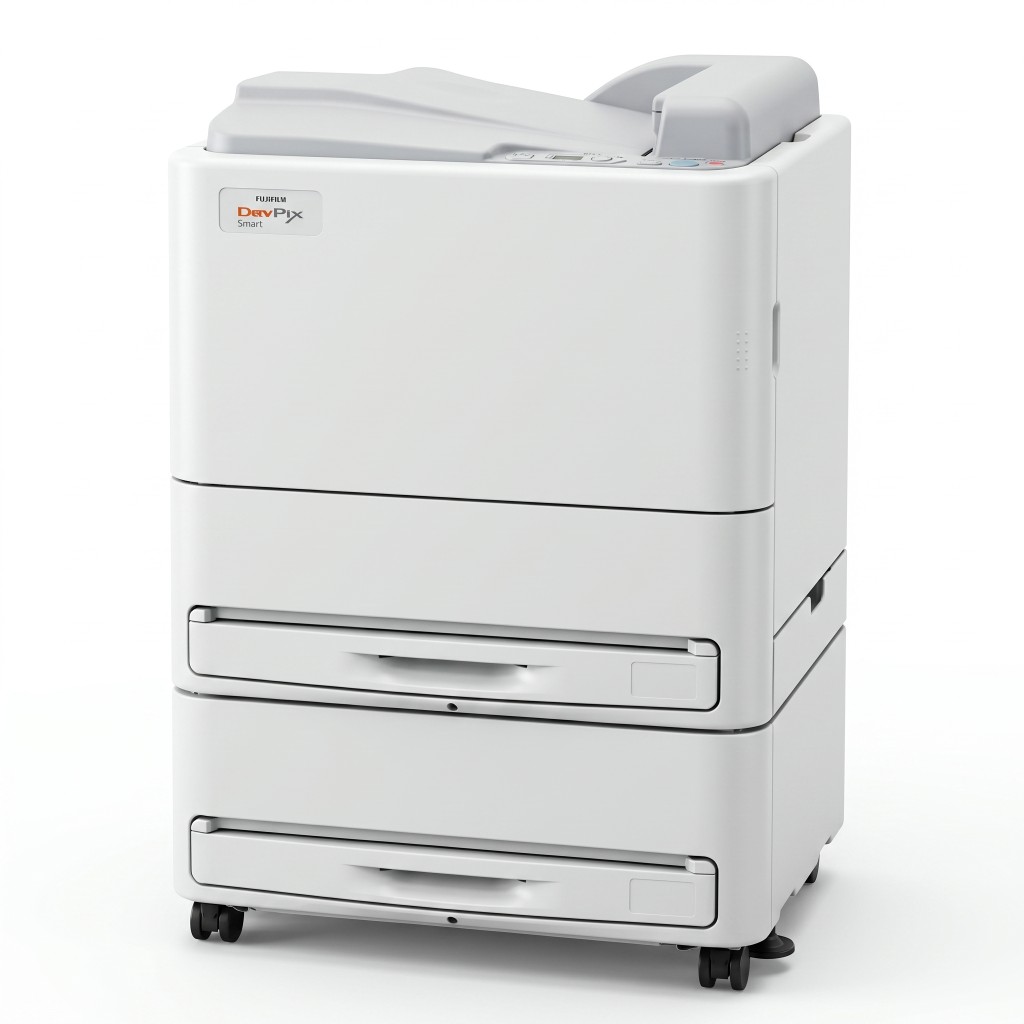

Fujifilm Fujifilm DRYPIX Smart (DRYPIX 6000)

Fujifilm DRYPIX Smart (DRYPIX 6000)2-tray laser dry imager — DI-HL / DI-ML film

Fujifilm DRYPIX 7000Previous-generation laser dry imager — DI-HL film

Fujifilm DRYPIX 4000Compact laser dry imager — DI-HL film

Fujifilm DRYPIX 2000Entry-level thermal imager — DI-HT film

Procurement support

Request Fujifilm DRYPIX Edge availability and logistics

Tell us the destination, required condition (refurbished or new), optional 4-bin sorter, installation scope and the DI-HL / DI-HLc / DI-ML film sizes you need on site. Indicative price is 6800 EUR per refurbished unit; Medem will check availability and prepare a tailored offer for your medical imaging supply chain.

FAQ

Fujifilm DRYPIX Edge questions for buyers

What is the Fujifilm DRYPIX Edge?

Fujifilm DRYPIX Edge is a Fuji Medical Dry Laser Imager with 3 universal film trays, 110 sheets/hour throughput at 35 x 43 cm and 508 dpi mammography-capable resolution. It uses Fujifilm DI-HL, DI-HLc and DI-ML dry imaging films.

Is DRYPIX Edge the same as DRYPIX 8000?

Yes. DRYPIX Edge is the marketing name and the imager belongs to the DRYPIX 8000 class in the Fujifilm dry laser imager line. The two names refer to the same product family.

What is the difference between DRYPIX Edge and DRYPIX Smart?

DRYPIX Edge has 3 universal trays and 110 sheets/hour throughput at 14 x 17", supports DI-HL, DI-HLc and DI-ML films, and offers an optional 4-bin sorter. DRYPIX Smart (DRYPIX 6000) has 2 trays, 80 sheets/hour at 14 x 17" and supports DI-HL and DI-ML.

Which films are compatible with DRYPIX Edge?

DRYPIX Edge uses three Fujifilm dry imaging films: DI-HL (blue base) and DI-HLc (clear base) in five sizes (35x43, 35x35, 26x36, 25x30, 20x25 cm) and DI-ML (blue base) in three sizes (26x36, 25x30, 20x25 cm).

Can DRYPIX Edge print mammography images?

Yes. With DI-ML film at 50 μm / 508 dpi and a max density of 4.0, DRYPIX Edge is officially mammography-capable and Fujifilm supports the Pink Ribbon Campaign with this imager line.

How fast does the DRYPIX Edge print?

Throughput is approximately 110 sheets/hour at 35.4 x 43.0 cm (14 x 17") and approximately 160 sheets/hour at 25.7 x 36.4 cm (10 x 14").

Where can I buy a Fujifilm DRYPIX Edge and what is the price?

Medem is a Fujifilm DRYPIX Edge supplier and distributor for hospitals, mammography centers, dealers and tender resellers. Indicative price is 6800 EUR per refurbished unit; the final price depends on destination, optional sorter and installation. Quote turnaround is typically within 24 hours.

What is the optional sorter for DRYPIX Edge?

The optional sorter for DRYPIX Edge adds 3 bins of 30 sheets each (plus the imager tray) for a total of 4 sorted destinations, classifying output by modality. With the sorter mounted, total height is approximately 1,425 mm and weight is approximately 135 kg.

What are the power and space requirements of DRYPIX Edge?

DRYPIX Edge measures 610 x 630 x 1,125 mm (24 x 25 x 44") imager-only and weighs approximately 125 kg. It operates on 100 V AC (12.0 A) or 200 V AC (6.0 A) at 50/60 Hz single phase. Working environment is 15-30 °C, 40-70% RH (at 15 °C) to 15-70% RH (at 30 °C).
