Fuji Medical Dry Laser Imager

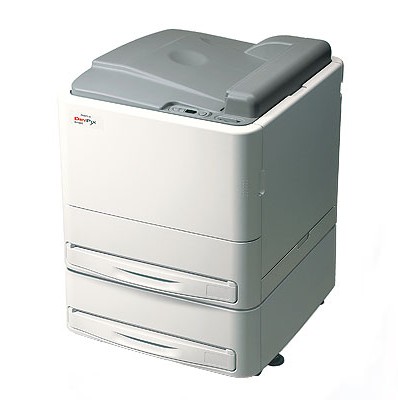

Fujifilm DRYPIX Smart (DRYPIX 6000) medical dry laser imager

Fujifilm DRYPIX Smart — model DRYPIX 6000 — is a compact 2-tray medical dry laser imager with 80 sheets/hour throughput at 35 x 43 cm (14 x 17"), 508 dpi mammography-capable resolution and ECO-DRY system. Compatible with Fujifilm DI-HL and DI-ML dry imaging films.

Medem LTD is a supplier and distributor of the Fujifilm DRYPIX Smart / DRYPIX 6000 imager for hospitals, mammography centers, medical equipment dealers and tender resellers, with DI-HL and DI-ML film supply available.

View full specifications

Overview

What is the Fujifilm DRYPIX Smart?

Fujifilm DRYPIX Smart (model DRYPIX 6000) is a compact medical dry laser imager designed for general radiology and mammography hardcopy. With 2 universal film trays, 80 sheets/hour throughput at 14 x 17 inch and 508 dpi mammography resolution, it serves multi-department hospitals, mammography centers and mid-size clinics on a small footprint.

DRYPIX Smart uses Fujifilm DI-HL and DI-ML dry imaging films and ships through Medem as either refurbished tested units or new (subject to factory availability), with optional installation, DICOM integration, operator training and ongoing film supply.

Image processing

Built around image quality

Fujifilm A-VR Spline Interpolation, SAR (Smooth Curve Arranging) tone mapping and FDC (Auto Film Density Correction) deliver sharp alphanumerics, smooth tones and stable density across CR, CT, MRI and mammography modalities.

Compatible films

Dry imaging films for DRYPIX Smart

DRYPIX Smart prints on Fujifilm DI-HL (blue base) for general radiology and DI-ML (blue base) for mammography. Both lines are supplied by Medem.

Fujifilm DI-HL (blue base)Five sizes from 35x43 (14 x 17") to 20x25 (8 x 10"). General radiology hardcopy on DRYPIX Smart.

Fujifilm DI-ML (blue base)High-density mammography film at 508 dpi — 26x36, 25x30 and 20x25 cm (10 x 14", 10 x 12", 8 x 10").Page coming soon

Features

Why hospitals choose DRYPIX Smart

2 universal film trays

Print two different film sizes at the same time. 5 sizes total: 35x43, 35x35, 26x36, 25x30 and 20x25 cm (14x17", 14x14", 10x14", 10x12", 8x10").

Mammography-ready at 508 dpi

High-resolution mode (50 μm / 508 dpi) and max density 4.0 with DI-ML film make DRYPIX Smart suitable for mammography hardcopy.

A-VR Spline Interpolation

Advanced Variable Response automatically distinguishes between image data and alphanumeric characters for sharp text and smooth tonal images.

SAR + FDC quality control

Smooth Curve Arranging (SAR) for modality-specific tones and Auto Film Density Correction (FDC) using a 24-step grayscale feedback loop.

ECO-DRY system

Aqueous solvent dry imaging, neutral tone, no harmful organic solvents — suitable for environmentally conscious imaging departments.

Compact 2-tray footprint

610 x 630 x 893 mm (24 x 25 x 35"), 104 kg — fits into compact radiology and tabletop installations while keeping throughput at 80 sheets/hour.

Specifications

DRYPIX Smart / DRYPIX 6000 specifications

Model numberDRYPIX 6000

Marketing nameDRYPIX Smart

Recording methodLaser exposure thermal development

ThroughputApprox. 80 sheets/hour at 35 x 43 cm (14 x 17")

Resolution50 μm / 508 dpi (high) · 100 μm / 254 dpi (standard)

Recording gradation14 bits

Max density4.0 with DI-ML film

Trays2 universal trays (5 film sizes available by changing trays)

Applicable filmsFujifilm DI-HL (blue base) and DI-ML (blue base)

Image memory1 GB

Input channelsDICOM network input (1 channel)

Density adjustmentAutomatic (FDC — Auto Film Density Correction)

Film loadingDaylight film loading

Dimensions (W x D x H)610 x 630 x 893 mm (24 x 25 x 35")

Weight104 kg (229.3 lbs)

Power supplyAC 100-240 V single phase, 50/60 Hz

Operating conditions15-30 °C · 40-70% RH (at 15 °C) to 15-70% RH (at 30 °C), no dew condensation

Procurement data

Supplier details for DRYPIX Smart buyers

Product referenceFujifilm DRYPIX Smart / DRYPIX 6000 medical dry laser imager

Condition optionsRefurbished and tested units; new units subject to factory availability

Quote lead timeUsually within 24 hours after destination and condition are confirmed

InstallationInstallation, DICOM integration and operator training quoted on request

Service and partsService consumables, spare parts and DI-HL/DI-ML film supply available

ShippingInternational freight quoted by destination; packaging for medical equipment included

DocumentsDatasheet, service brief and availability confirmation on request

By size

Fujifilm DRYPIX Smart film sizes — 35x43, 35x35, 26x36, 25x30 and 20x25 cm

DRYPIX Smart accepts five standard Fujifilm dry imaging film sizes. The 2-tray design enables two formats to print simultaneously without tray swaps.

35x4335 x 43 cm · 14 x 17"

Films: DI-HL

35x3535 x 35 cm · 14 x 14"

Films: DI-HL

26x3626 x 36 cm · 10 x 14"

Films: DI-HL · DI-ML

25x3025 x 30 cm · 10 x 12"

Films: DI-HL · DI-ML

20x2520 x 25 cm · 8 x 10"

Films: DI-HL · DI-ML

Supplier · Distributor · Dealer

Fujifilm DRYPIX Smart supplier, distributor and dealer support

Medem LTD works as a Fujifilm DRYPIX Smart / DRYPIX 6000 supplier and distributor for hospitals, mammography centers, medical equipment dealers and tender resellers worldwide.

Hospitals and radiology departments

DRYPIX Smart suits multi-department hospitals needing 2-tray mixed-size workflows (35x43 with 26x36 or smaller) and 80 sheets/hour throughput.

Mammography centers

508 dpi mode and DI-ML film support qualify DRYPIX Smart for mammography hardcopy at sites already standardised on Fujifilm dry imaging.

Medical equipment distributors and dealers

Medem prices Fujifilm DRYPIX Smart for medical equipment distributors, dealers and tender resellers, with consumables (DI-HL/DI-ML) included on request.

Refurbishment and replacement projects

DRYPIX 6000 / Smart units are available as part of imager replacement projects, including DI-HL film supply during the transition.

Ask for a Fujifilm DRYPIX Smart / DRYPIX 6000 supplier offer with the destination, condition (refurbished or new) and required film sizes (35x43, 35x35, 26x36, 25x30 or 20x25 cm) — Medem usually replies within 24 hours.

When to choose DRYPIX Smart

Fujifilm DRYPIX Smart supplier scenarios

Typical Fujifilm DRYPIX Smart deployment patterns supplied by Medem, by clinical workflow and buyer type.

Multi-department hospital — 2-tray DRYPIX Smart with DI-HL 35x43 (14 x 17") + 26x36 (10 x 14")Two universal trays loaded with 35 x 43 cm and 25.7 x 36.4 cm DI-HL keep chest, full-body, skull and abdominal hardcopy running at 80 sheets/hour without tray changes.
Mammography center — DRYPIX 6000 with DI-ML at 508 dpiFujifilm DI-ML 26x36 (10 x 14") and 25x30 (10 x 12") on DRYPIX Smart provide mammography hardcopy at 50 μm pixel size with max density 4.0.
Mid-size clinic — DI-HL across all 5 sizes on DRYPIX SmartA single DRYPIX Smart serves general radiology, extremity and pediatric studies with DI-HL 35x43, 35x35, 26x36, 25x30 and 20x25 (14x17", 14x14", 10x14", 10x12", 8x10").
Equipment dealers and refurbishmentMedem supplies Fujifilm DRYPIX Smart / DRYPIX 6000 units to medical equipment dealers and refurbishers, with optional DI-HL / DI-ML film bundles.
Equipment replacement projectReplacing an older Fuji laser imager (DRYPIX 4000/5000/7000) — DRYPIX Smart with 2 trays keeps the existing DI-HL film line and minimises workflow disruption.

Other Fujifilm DRYPIX dry laser imagers

Compare DRYPIX Smart with the rest of the Fujifilm DRYPIX dry imager line supplied by Medem.

Fujifilm DRYPIX 7000Higher-volume laser dry imager — uses DI-HL film

Fujifilm DRYPIX 4000Compact laser dry imager — uses DI-HL film

Fujifilm DRYPIX 2000Entry-level thermal imager — uses DI-HT film

Fujifilm DRYPIX 8000Top-tier laser dry imager — uses DI-HL / DI-ML film

Procurement support

Request Fujifilm DRYPIX Smart availability and logistics

Tell us the destination, required condition (refurbished or new), optional installation and the DI-HL / DI-ML film sizes you need on site. Medem will check availability and prepare a tailored offer for your medical imaging supply chain.

FAQ

Fujifilm DRYPIX Smart questions for buyers

What is the Fujifilm DRYPIX Smart?

Fujifilm DRYPIX Smart is a Fuji Medical Dry Laser Imager (model DRYPIX 6000) with 2 universal film trays, 80 sheets/hour throughput at 35 x 43 cm and a 508 dpi mammography-capable resolution. It uses Fujifilm DI-HL and DI-ML dry imaging films.

Is DRYPIX Smart the same as DRYPIX 6000?

Yes. DRYPIX Smart is the marketing name and DRYPIX 6000 is the model number of the same Fujifilm medical dry laser imager.

Is DRYPIX Smart the same as DRYPIX 4000?

No. DRYPIX 4000 is a separate, simpler model in the Fujifilm DRYPIX line. DRYPIX Smart corresponds to DRYPIX 6000 and offers 2 trays, mammography-class 508 dpi resolution and 80 sheets/hour throughput at 35 x 43 cm.

Which films are compatible with DRYPIX Smart?

DRYPIX Smart uses Fujifilm DI-HL (blue base) in 35 x 43, 35 x 35, 26 x 36, 25 x 30 and 20 x 25 cm and Fujifilm DI-ML (blue base) in 26 x 36, 25 x 30 and 20 x 25 cm (10 x 14", 10 x 12" and 8 x 10").

Can DRYPIX Smart print mammography images?

Yes. With DI-ML film at 50 μm (508 dpi) and a max density of 4.0, DRYPIX Smart is suitable for mammography hardcopy.

How fast is the DRYPIX Smart imager?

DRYPIX Smart prints approximately 80 sheets per hour at 35 x 43 cm (14 x 17").

Where can I buy a Fujifilm DRYPIX Smart?

Medem is a Fujifilm DRYPIX Smart supplier and distributor for hospitals, mammography centers, dealers and tender resellers. Send the destination, condition (refurbished or new) and the films required (DI-HL or DI-ML, with sizes) to receive a quote, usually within 24 hours.

What are the power and space requirements of DRYPIX Smart?

DRYPIX Smart measures 610 x 630 x 893 mm (24 x 25 x 35") and weighs 104 kg. It operates on AC 100-240 V single phase at 50/60 Hz, in 15-30 °C and 40-70% RH.
